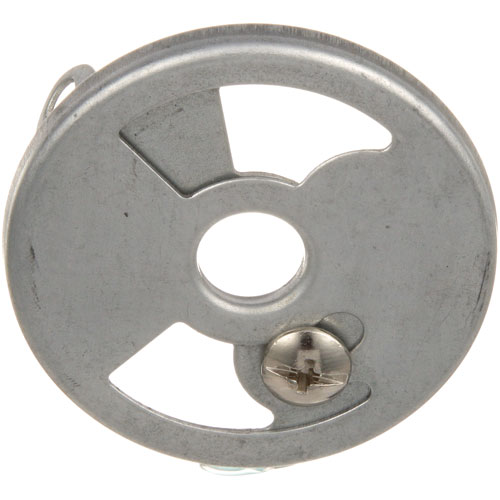

Comstock Castle 16000 Burner Twin Plate Air Shutter 2 Slots .463" Orifice Hole

SKU: 16000 3-16000 Brand:
Comstock Castle
Availability:
Out of Stock
(0)
£10.26
Have a Question? +44 2921680023

Specifications:

  • Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
  • 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
  • For Cast Iron Burner.
  • Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
  • Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
  • Grill 2436, 2436T, 2472, 2472T, Grizzly G.
  • Range 136-5, 136-559~
  • Series:
  • Vulcan
  • Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
  • (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
  • Range 7830.
  • Wolf Oven

Description

Comstock Castle 16000 Burner Twin Plate Air Shutter is a gas system component that is used to regulate and adjust the amount of primary air entering the burner. It has a twin plate design with two adjustment slots and a 0.463-inch orifice hole to allow proper air-to-gas mixing. This component is fitted into commercial gas cooking machines that utilize the system assembly. Its role in the burner system is to stabilise the flame properties, assist in the uniform combustion and aid in the controlled heat production during normal operation.

Dimensions:

  • Weight: 0.07 kgs
  • Length: 2.05 cm
  • Height: 0.31 cm
  • Width: 2.05 cm

This Part Fits the Following Models

100 models
Montague 124-5 Montague 124-559 Montague 124-S Montague 12-5 Montague 12-559 Montague 12-559S Montague 12-5S Montague 12-8 Montague 12-9E Montague 12-9G Montague 12-S Montague 136-0E Montague 136-0EPL Montague 136-0G Montague 136-0GPL Montague 136-10E Montague 136-10G Montague 136-11 Montague 136-11E Montague 136-12 Montague 136-12E Montague 136-12EPL Montague 136-12PL Montague 136-13 Montague 136-13PL Montague 136-14 Montague 136-14E Montague 136-15 Montague 136-16 Montague 136-1E Montague 136-1G Montague 136-2E Montague 136-2G Montague 136-3E Montague 136-3G Montague 136-4E Montague 136-4G Montague 136-5 Montague 136-559 Montague 136-559S Montague 136-5A Montague 136-5S Montague 136-6 Montague 136-7 Montague 136-7PL Montague 136-8 Montague 136-8PL Montague 136-9A Montague 136-9ASE Montague 136-9E Montague 136-9G Montague 136LB Montague 136LB/12LB/UFLC-48R Montague 136LB/24LB/UFLC-60R Montague 136LB/UFLC-36R Montague 136S Montague 136XLB Montague 136XLB/UFLC-36R Montague 18-5A Montague 18-8 Montague 18-8PL Montague 18-9A Montague 18-9ASE Montague 18-S Montague 2/136LB/UFLC-72R Montague 2/C24-8 Montague 2/C24-8T Montague 2/C36-8 Montague 2/C36-8/C18-8 Montague 2/C36-8/C24-8 Montague 2/C36-8T Montague 2/C368T/C18-8T Montague 2/C368T/C24-8T Montague 2/V136/UFLC-7R Montague 236 Montague 236XLB Montague 24-5 Montague 24-559 Montague 24-559S Montague 24-5S Montague 24-8 Montague 24-8PL Montague 24-9E Montague 24-9G Montague 24-S Montague 336XLB Montague 36-0E Montague 36-0EPL Montague 36-0G Montague 36-0GPL Montague 36-10E Montague 36-10G Montague 36-11 Montague 36-11E Montague 36-12 Montague 36-12E Montague 36-12EPL Montague 36-12PL Montague 36-13 Montague 36-13PL
Showing of 100.0

ANETS:

-P9300-10 P9300-10

COMSTOCK CASTLE:

-16000 -25 25

HOBART:

00-404060-00001 00-719241 104060-1 19241 404060-00001 404060-1 719241

MAGIKITCH'N:

-30-05-00395 -30-05-00395-A -3005-0039500 -300500395 -300500395A

MONTAGUE:

-02038-9 -2038-9 -B-26 -B26 -G-11 -G11 -R-26 -R26 02038-9 2038-9 B-26 B26 G-11 G11 MON2038-9 MONB26 MONG11 MONR26 R-26 R26

PITCO:

-P9300-10 P9300-10

SOUTHBEND:

-1127299 1127299

VULCAN HART:

-00-404060-00001 -00-719241 -104060-1 -19241 -404060-00001 -404060-1 -719241 00-404060-00001 00-719241 104060-1 19241 404060-00001 404060-1 6470 719241 806470 VH104060-1 VH404060-1 VH6470 VH806470
