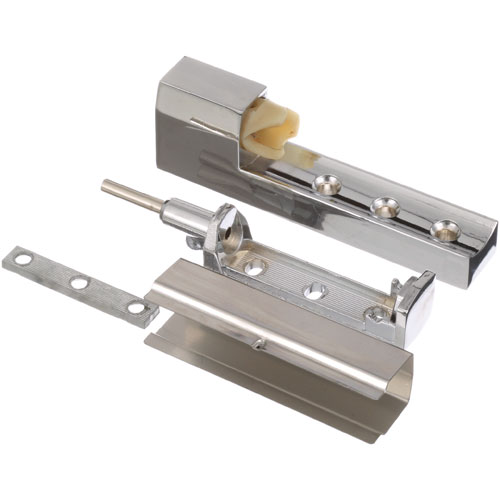

Beverage Air 00C34-031D-01 Refrigerator Hinge Assembly Edgemount Cam Lift

SKU: 00C34-031D-01 3-00C34-031D-01 Brand:
Beverage Air
Availability:
Out of Stock
(7)
£19.18
Have a Question? +44 2921680023

Specifications:

  • Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
  • 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
  • Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
  • Series 2850-1013
  • Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
  • Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
  • Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
  • Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
  • Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
  • Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
  • Delfield, Randell, Traulsen
  • Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
  • Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88

Description

The Beverage Air 00C34-031D-01 Refrigerator Hinge Assembly Edgemount Cam Lift is a mechanical part that assists in the movement of doors. It is attached to the periphery of the door frame and is pivoted smoothly without compromising its proper positioning as it opens and closes. This is used to maintain a uniform door closing and create less tension on the door, which explains the overall energy efficiency and performance of the appliance. It is widely applied in commercial systems where the door movement and stability are needed to keep the temperature under control and to ensure the performance.

Dimensions:

  • Weight: 0.42 kgs
  • Length: 15.24 cm
  • Height: 2.54 cm
  • Width: 5.08 cm

This Part Fits the Following Models

100 models
Beverage Air DP119 Beverage Air DP41 Beverage Air DP46 Beverage Air DP67 Beverage Air DP93 Beverage Air EF SERIES Beverage Air EF24 Beverage Air EF24-1AH Beverage Air EF24-1AHS Beverage Air EF24-1AHS-34 Beverage Air EF48 Beverage Air EF74 Beverage Air ER24 Beverage Air ER24-1AHS-34 Beverage Air ER-24-1AS Beverage Air ER48 Beverage Air ER74 Beverage Air HF1-1HS-TU Beverage Air HF2-1S Beverage Air HF3-5S Beverage Air HFPS1-1 Beverage Air PF24 Beverage Air PF48 Beverage Air PF74 Beverage Air PFI1 Beverage Air PFI2 Beverage Air PR24 Beverage Air PR48 Beverage Air PR74 Beverage Air PRD24 Beverage Air PRD48 Beverage Air PRD74 Beverage Air PRF12-12 Beverage Air PRF24-24 Beverage Air PRF48-24 Beverage Air PRI1 Beverage Air PRI2 Beverage Air PRT1 Beverage Air PRT2 Beverage Air PW24 Beverage Air PW48 Beverage Air PWD24 Beverage Air PWD48 Beverage Air PWI1 Beverage Air PWI2 Beverage Air SP27 Beverage Air SP48 Beverage Air SP48-12M Beverage Air SP60 Beverage Air SP72 Beverage Air UC Beverage Air UCF27 Beverage Air UCF27-23 Beverage Air UCF48 Beverage Air UCF48A Beverage Air UCR20 Beverage Air UCR-27A-23 Beverage Air UCR34 Beverage Air WT Beverage Air WTF27 Beverage Air WTF48 Beverage Air WTR-27 Beverage Air WTR27A Beverage Air WTR48A-23 Beverage Air WTR60A-23 Delfield 6051XL-GH-47 Delfield 6100 Series Delfield MD6R1-SH Delfield MFR1-SLH Delfield MFR1-STDL Delfield MFR2-STDL Delfield MFR3-STDL Delfield SSDBR1/SADBR1/SMDBR1-GH Delfield SSDBR1/SADBR1/SMDBR1-SH Delfield SSDFL2/SADFL2/SMDFL2-G Delfield SSDFL2/SADFL2/SMDFL2-GH Delfield SSDFL2/SADFL2/SMDFL2-S Delfield SSDFL2/SADFL2/SMDFL2-SH Delfield SSDFP2/SADFP2/SMDFP2-S Delfield SSDFP2/SADFP2/SMDFP2-SH Delfield SSDRL2/SADRL2/SMDRL2-G Delfield SSDRL2/SADRL2/SMDRL2-GH Delfield SSDRL2/SADRL2/SMDRL2-S Delfield SSDRL2/SADRL2/SMDRL2-SH Delfield SSDRP2/SADRP2/SMDRP2-S Delfield SSDRP2/SADRP2/SMDRP2-SH Delfield SSDTR1/SADTR1/SMDTR1-GH Delfield SSDTR1/SADTR1/SMDTR1-SH Delfield SSF1/SAF1/SMF1-G Delfield SSF1/SAF1/SMF1-GH Delfield SSF1/SAF1/SMF1-S Delfield SSF1/SAF1/SMF1-SH Delfield SSF1N/SAF1N/SMF1N-S Delfield SSF1N/SAF1N/SMF1N-SH Delfield SSF1S/SAF1S/SMF1S-S Delfield SSF1S/SAF1S/SMF1S-SH Delfield SSF2/SAF2/SMF2-G Delfield SSF2/SAF2/SMF2-GH Delfield SSF2/SAF2/SMF2-S Delfield SSF2/SAF2/SMF2-SH
Showing of 100.0

BEVERAGE AIR:

00C34031D01 401-239B 401-657B 401657B BEV401-239B BEV401-657B

CHG:

R50-2850

DELFIELD:

323-4617 3234593 3234617 3234617-S 3234617KT 3234617KT-S 3234750 DEL3234617KT

FOGEL:

HA-349-A

HOBART:

00-436057-00022 430098 436057-00022 436057-22

HUSSMANN:

35S014

RANDELL:

HD HIN0001 HD HIN400 HD-HIN0001 HD-HIN400 HDHIN0001 HDHIN400

STAR MFG:

SP-880-3 SP880-1 SP880-3

STERO:

2HAL0880-001 2HAL0880-003

VULCAN HART:

00-436057-00022 430098 436057-00022 436057-22

Step1: Open the door and support it securely to prevent movement.

Step2: Remove the existing hinge by unscrewing it from the door and frame.

Step3: Align the new cam lift hinge with the mounting holes.

Step4: Secure the hinge with screws, ensuring proper engagement of the cam mechanism.

Step5: Check door alignment and adjust hinge position if necessary.

Step6: Test the door for smooth opening and proper lift operation.
